Paper Tube & Core Production Line

Salient Features

  • Higher output
  • Extra strong tubes
  • Electronic proportional control system for winding speed adjustment
  • Rapidly interchangeable mandrels
  • Pneumatic control of winding belt tension
  • Built-in control panel with remote station.





spiral paper tube winder, spiral paper tube winder manufacturers inida, paper tubes, paper tubes india, india

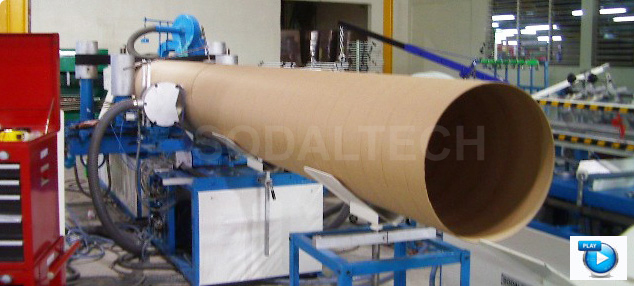

Ultra Heavy Duty model for Construction Cores

This model is highly suitable for producing larger diameter cores for construction pillars, storage cores etc.

Enquiry Form

.ultra heavy duty model for construction cores

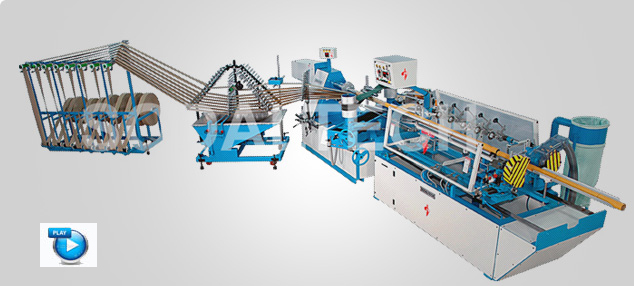

Paper Tube Winder with Multi Cutter
for Kitchen Foil Tubes

This versatile spiral Paper Tube Winder is to deliver high output of pre-cut cores for toilet tissue winding, kitchen foil winding etc.

Enquiry Form

paper tube winder with multicutter for kitchen foil tubes


spiral paper tube winder, spiral paper tube winder manufacturers inida, paper tubes, paper tubes india, india

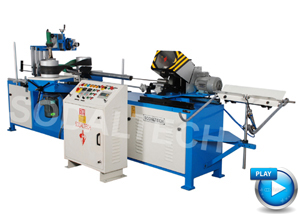

Paper Tube Winder CCW Model

This machine is used to manufacture thin, medium walled paper tubes and cores for tissue rolls, fax rolls etc.

Salient Features

  • Output Up to 15 mts/min. depending upon the sizes of the tube
  • Minimum inner diameter : 25 mm
  • Maximum inner diameter : 100 mm
  • Maximum wall thickness : 5 mm


Paper Tube Winder


spiral paper tube winder, spiral paper tube winder manufacturers inida, paper tubes, paper tubes india, india

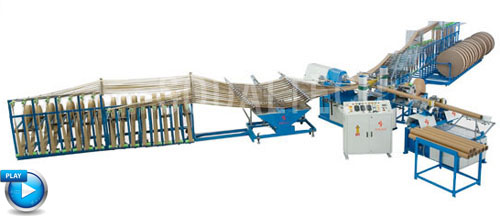

Paper Core Winder


Paper Core Winder
This heavy duty Spiral Paper Core winder is suitable to produce thick walled cores for various applications like paper mill reel cores, film winding cores, carpet cores etc.
This machine is easy to operate and maintain. The cutting carriage moves on free slide rails synchronized with the main tube winder. The online fine cutting unit delivers burr free cores without dust and noise generation.

Salient Features

  • Output : Up to 15 mts/min. depending upon the sizes of the tube
  • Minimum inner diameter : 30 mm
  • Maximum inner diameter : 500 mm
  • Maximum wall thickness : 16 mm


spiral paper tube winder, spiral paper tube winder manufacturers inida, paper tubes, paper tubes india, india

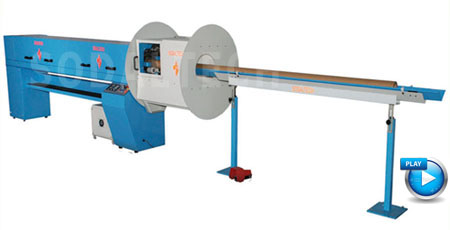

Automatic Core Cutter SARC Series
Our Automatic Core Cutter is used to re-cut jumbo length cores into smaller size cores.
This machine is very ideal for users of paper cores like paper mills, newsprint mills, BOPP Film manufacturers, converters etc. who can reduce their inventory and hassles of buying cores in different lengths from core manufacturers. They can stock jumbo length cores and cut into required lengths suiting their production plans using this core cutter.
This machine is fitted with suitable safety devices for operator’s protection. The core cutter is simple to operate and maintain.

Salient Features

  • Output : Up to 6 cuts per minute depending upon the sizes and widths (or) approx. 6000 jumbo cores / day
  • Minimum inner diameter : 50 mm
  • Maximum inner diameter : 150 mm
  • Minimum length of cut : 50 mm
  • Maximum length of cut : 3000 mm
  • Maximum wall thickness : 16 mm



Automatic Core Cutter


spiral paper tube winder, spiral paper tube winder manufacturers inida, paper tubes, paper tubes india, india

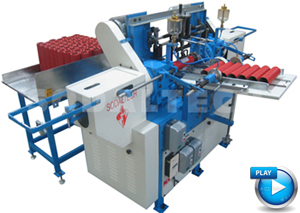

Automatic Tube Finishing Machine


Automatic Tube Finishing Machine : This automatic Tube Finishing Machine is suitable for finishing textile yarn carriers like DTY and POY tubes and fitted with automatic tube transfer mechanism.

Salient Features

  • Multiple operations
  • Both ends polishing
  • One end curling & other end polishing
  • POY Tube Notching & Grooving
  • Smooth, simple operations
  • Easy interchangeability of toolings
  • Thread notch depth angles & reference are easily adjustable.


spiral paper tube winder, spiral paper tube winder manufacturers inida, paper tubes, paper tubes india, india

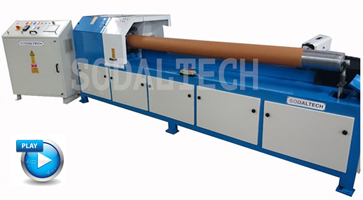

Automatic Core Cutter EC Series

AUTOMATIC PAPER CORE CUTTING MACHINE Model EC 1500 to recut jumbo length paper cores into smaller width cores.

Salient Features of the Machine :
Cutting station : Operated by imported SERVO system of reputed brand with programmable length cutting facility (single or six different cutting width) with touch screen operation.

Various cutting options can be easily programmed
Burr free fine cutting
Output : Approx. 20 cuts per minute depending upon the core sizes and cutting width
Operator : One person



Working Range
Minimum Inner Diameter of Core : 50 mm
Maximum Inner Diameter of Core : 203 mm
Maximum wall thickness of Core : 12.5 mm
Minimum length of Parent Core : 300 mm
Maximum length of Parent Core : 1500 mm
Minimum cut length : 15mm
Maximum cut length : 1500 mm
Cutting Accuracy : +/- 1 mm depending upon the sizes
Power (Approx) : 3.5 KW
Required Air pressure : 6 Bar maximum



paper tube core Cutter



AUTOMATIC PAPER CORE CUTTING MACHINE Model EC 2200 (Special model) to recut jumbo length paper cores into smaller width cores.

Salient Features of the Machine :
Cutting station : Operated by imported SERVO system of reputed brand with programmable length cutting facility (single or six different cutting width) with touch screen operation.

Various cutting options can be easily programmed
Burr free fine cutting
Output : Approx. 20 cuts per minute depending upon the core sizes and cutting width
Operator : One person

Working Range
Minimum Inner Diameter of Core : 50 mm
Maximum Inner Diameter of Core : 203 mm
Maximum wall thickness of Core : 16 mm
Minimum length of Parent Core : 300 mm
Maximum length of Parent Core : 2300 mm
Minimum cut length : 15mm
Maximum cut length : 2200 mm
Cutting Accuracy : +/- 1 mm depending upon the sizes
Power (Approx) : 3.5 KW
Required Air pressure : 6 Bar maximum

paper tube, paper tube machines, paper tube manufacturers india, india

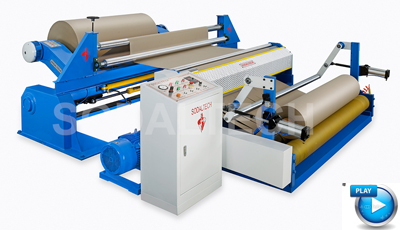

Heavy Duty Slitter Rewinder ETS 2000 Model



Heavy Duty Slitter Rewinder ETS 2000 Model

Salient Features

  • Maximum parent reel width (approx) : 2000mm
  • Parent reel outer diameter (approx) : 1300mm
  • Slit reel outer diameter (maximum) approx : 1300mm
  • Minimum slitting width : 75mm
  • Maximum cutting stations : 27 Nos
  • Output Speed (approx) : 100 metres per minute depending on the quality of the raw material, size etc
  • Parent Paper Reel Loading : Automatic
  • Parent Paper Reel Clamping : Automatic
  • Unloading of slit reel : Automatic
  • Maximum weight of the parent reel (approx) 800 Kgs
  • GSM Range : 100 GSM to 600 GSM
  • Paper Core Size : 3” Both Unwind and Rewind station
  • Total Power (approx) : 13 KW
  • Air Supply requirement : 6 Bar (100 lpm)
  • Trim waste removal system
  • Shaftless paper reel clamping
  • Numerical braking system for tension control


paper tube, paper tube machines, paper tube manufacturers india, india

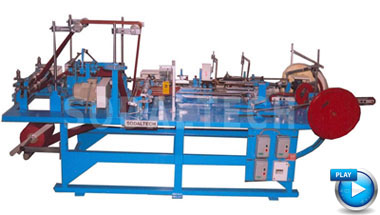

Convolute Tube Winder

Highly suitable for producing tubes for sewing thread, gun cartridges, pyrotechnic tubes (fireworks tubes) incense stick, packing tubes etc.

Automatic Tube Finishing Machine




Fully Automatic Textile Tube Making Machine
with Automatic Recutter and Finishing Machine

Salient Features

  • Easy to operate and maintain
  • Easy interchangeability of toolings
  • Highly suitable for DTY Tubes production


spiral paper tube winder, spiral paper tube winder manufacturers inida, paper tubes, paper tubes india, india
