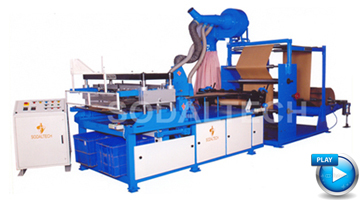

Automatic Paper Cone Production Line With Online Drier (GERMAN MODEL) |
|
Salient Features
- High performance machine with output up to 55 cones per minute @ 100% efficiency
- For standard cone tapers such as 9 DEG 15′,5 DEG 57′, 4 DEG 20′ & 3 DEG 30′etc
- Unique Patented Gripper Winding system which ensures minimum process wastage with less power impact.
- Finger Touch Paper Reel Loader
- Easy Reel Shifter
- Reel Tensioning Devices
- Rapid setting and size changeover facility
- Latest type glue applicator
- Waste paper exhaust system
- Online Printer for precise single or multicolour Printing with great flexibility of standard designs as shown in the colour chart.
- Drier can be heated with multiple source of energy such as coal or firewood or gas or steam or electric or thermic heating with automatic energy saving device.
- Inner logo printer (Optional)
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
Fully Automatic Paper Cone Finishing Machine - Twin index
Salient Features
- All integrated finishing operations performed by a single machine automatically
- Automatic feeding of unfinished cones
- Nosing (Top Curling)
- Nose end lubrication
- Bottom burnishing
- Notching device to punch thread guide notch
- Grooving at the base
- Surface velvet finishing
- Automatic stacking of finished cones
- Output : Upto 55 cones per minute
|
|
|
| |
|
Pattern Developing Machine REEL MODEL (JAPANESE MODEL) |
Salient Features
- Highly versatile to cut patterns for cone tapers 5°57', 4°20', 3°30' etc
- Automatic paper feeding and edge grinding
- Rapid changeover between conicities
- Online printer for precision printing with great flexibility
- Inner logo printer (Optional)
- Maximum output : 100 patterns per minute
|
|
|
|
|
Glueing Machine and Paper Cone Winders (Semi Automatic)
Salient Features
- Glueing Machine :
Glue coating thickness adjustable
Uniform coating on both sides of cone pattern
- Paper Cone Winder :
Single revolution synchronized clutch
Pneumatic air ejection system
Faster interchange of sizes
|
|
|
|
|
|
Paper Cone Finishing Machine (Multi Process)
Salient Features
- Base cutting, grooving, bull nosing, velvet finishing and automatic counting cum nesting operations done in a single machine
- Easy interchangeability of mandrels and abrasive belts
- Automatic indexing of cones as per operational sequence
- Bull nosing pressure, cutting depth and nosing axis - all adjustable independently
- Versatile to finish various cone tapers viz., 3°30', 4°20', 5°57' etc.
- Mechanism to disengage cutting knife when no cone is in mandrel to improve life of mandrel and knife.
- No air ejection when no cone is in mandrel to save compressed air.
- No velvet finishing when no cone is in mandrel thus increasing the life of emery belt.
|
|
|
|
|
|
|
|
|
