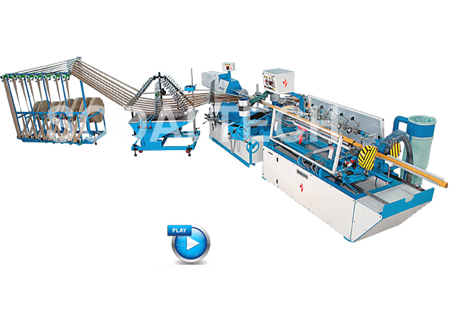

Composite Can Production Line


The Composite Can Making Plant is suitable to make Composite Cans for packaging of detergents, liquor bottles, automobile components, engineering goods, laminated cans for packaging of potato wafers, fruit drink, etc. These composite cans are eco-friendly as they are easily disposable and recyclable.

The can body maker is fitted with a folding and heat sealing equipment to heat seal inner aluminium foil layer for leak proof cans.

The key feature of this production line is its high performance with low maintenance cost. The composite cans making machinery comes with other optional equipment for producing composite cans, which include labelling machine, can flanger and can seamer.

The composite can production line facilitates easy interchangeability of toolings for various sizes of cans.

TECHNICAL SPECIFICATIONS:

Output : 30,000 cans per day of 24 hours operation depending upon the sizes
Minimum inner diameter of the can : 25 mm
Maximum inner diameter of the can : 100 mm
Maximum height of the can : 525 mm
Maximum Wall thickness : 3 mm


composite can machine
composite can machine, horizontal labelling machine, can seaming machine, compact core winder machine
COMPACT CORE WINDER manufacturer


Compact Core Winder

The main salient feature of this production line is its high performance with low maintenance cost . The composite cans making machinery comes with other optional equipment for producing composite cans. The other major parts of composite can production line include labelling machine, can flanger and can seamer.

The composite can production line facilitates easy interchangeability of toolings for various sizes of cans.




composite can machine, horizontal labelling machine, can seaming machine, compact core winder machine

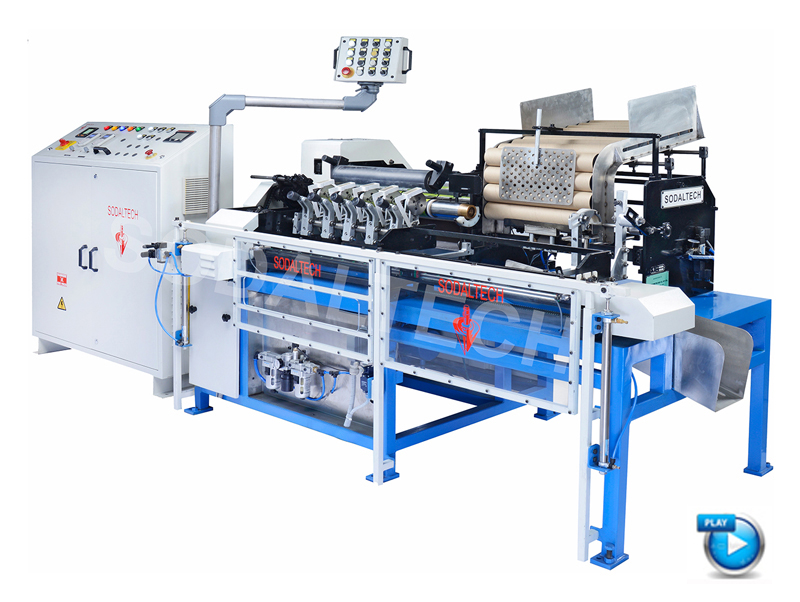

Horizontal Labelling Machine

This machine is used to wrap pre-printed label on the body of the can.

TECHNICAL SPECIFICATIONS:
Output : Up to 30 pieces per minute depending upon size and operator’s efficiency (or) approx. 35,000 cans/day depending upon the sizes

Minimum inner diameter of tube : 50 mm
Maximum inner diameter of tube : 100 mm
Maximum wall thickness : 5 mm
Maximum width of labelling area : 500 mm

    Horizontal Labelling Machine
composite can machine, horizontal labelling machine, can seaming machine, compact core winder machine

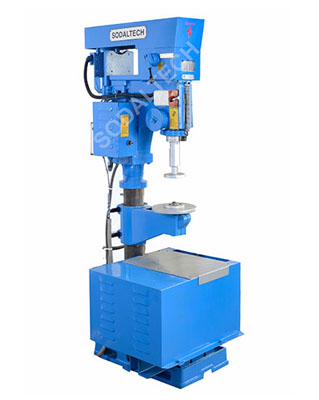

Can Flanging Machine



Can Flanging Machine

To make flanging at the ends of the can for firm holding and crimping of the lid.

Technical Specification
Output : 25 cans / minute depending on the operator’s efficiency

Minimum inner diameter of the can : 22 mm

Maximum inner diameter of the can : 150 mm

Maximum height of labelling area : 350 mm

composite can machine, horizontal labelling machine, can seaming machine, compact core winder machine

Advantages of Composite cans:

1. Cost Effective and environment friendly packaging.

2. Highly suitable for a variety of products like confectionary, milk powder, medicines, potato wafers, cleaning powders, detergents, whisky bottles, toys, industrial tools etc.

3. Composite-cans also supplied with sealing membranes and easy-open lids for greater consumer convenience.



Composite Cans

composite cans
